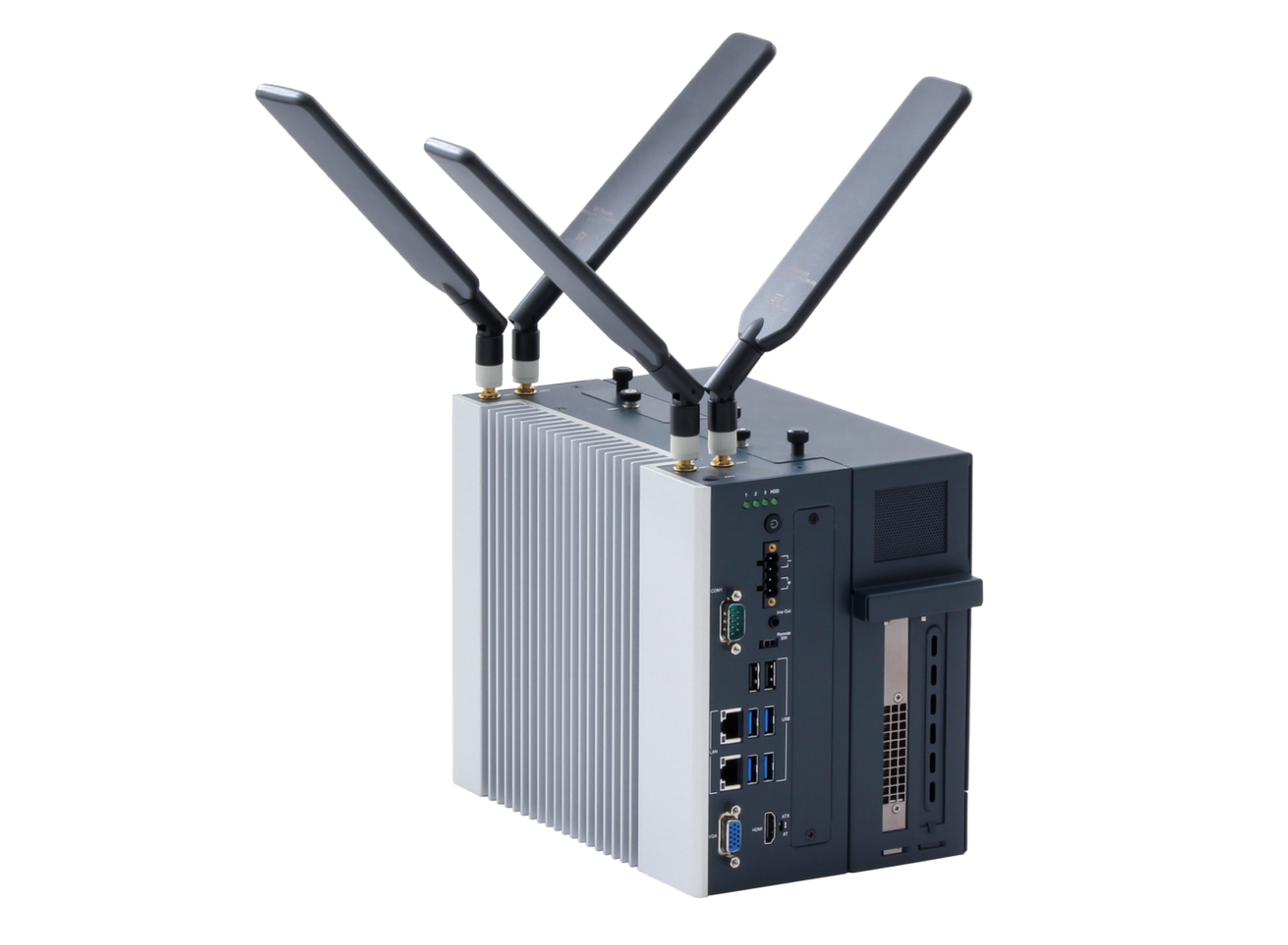

ESC-T4-711
Edge AI Box - 5G Advance

< Back to index

5G compatible. A high-spec device suitable for high-speed communication.

  1. Features
  2. - Industrial high-performance edge computer
    - high-performance GPU (NVIDIA® T4 GPU)
    - 9th/8th gen Intel® Core™ i7 processor
    - Large capacity HDD (4TB x 2)
    - High-speed Strage (NVMe SSD : 256GB equivalent)
    - 5G model and Wi-Fi model
    - Smart fan

See the user's manual> PDF版

Watch demo movie> DEMO

Specifications
  1. Construction
  2. Aluminum extrusion and heavy-duty cold-rolled steel
  1. Ingress Protection
  2. IP40
  1. Core Module
  2. 9th/8th gen Intel® Core™ i7 (Coffee Lake-S) + NVIDIA T4
  1. GPU
  2. NVIDIA Tesla T4, 320 Turing Tensor Cores, 2,560 CUDA cores
  1. CPU
  2. 9th/8th gen Intel® Core™ i7 (Coffee Lake-S)
  1. Memory
  2. 2 x DDR4-2666/2400 un-buffered SO-DIMM, 32GB
  1. System I/O Outlet
  2. 1 x Switch for power on/off w/LED (ATX)
    1 x ATX/AT sekectable switch
    1 x Remote switch
    1 x RS232(default)/422/485
    1 x 4-pin terminal block
    2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & i219-LM)
    4 x USB 3.1 gen 2
    2 x USB 2.0
    1 x HDMI
    1 x VGA
    1 x Audio (Line-out)
    1 x Ground terminal
  1. TPM
  2. TPM2.0
  1. PoE/PoE+
  2. -
  1. Storage
  2. 2 x 2.5" 4TB SATA3 54R/128M SSD (support RAID 0,1)
    1 x M.2 256GB NVMe SSD
  1. 5G/LTE
  2. 5G : Telit FN980 (5G model)
  1. Wi-Fi/Bt
  2. 802.11 a/b/g/n/ac, Bt4.1 (Wi-Fi model)
  1. Power Consumption (measured *1)
  2. -
  1. Power Consumption (MAX *2)
  2. 230W
  1. Power Unit
  2. Type : ATX/AT
    Input : 24 VDC (uMin = 19V / uMax = 30V)
    1 x Adapter 24V/230W, wire only
  1. Operting Temperature *3
  2. -10℃ to +60℃ (+14℉ to +140℉)
  1. Humidity
  2. 10% ~ 90%, non-condensing
  1. Vibration Endurance
  2. -
  1. Dimensions
  2. 147.5 mm (5.80") (W) x 230 mm (9.04") (D)
    x 192 mm (7.54") (H)
  1. Weight
  2. 4.382 kg (9.66 lb)/5.346 kg (11.80 lb)
  1. Certification
  2. CE & FCC Compliance
  • Our measured value CPU & Memory & eMMC & M.2 SSD & GPU & Wi-Fi(and/or)LTE module full loading
  • Since power protection is guaranteed by the AC adapter or the built-in power supply, those MAX values are used.
  • Tested CPU / RAM / eMMC / M.2 SSD / GPU with full loading
